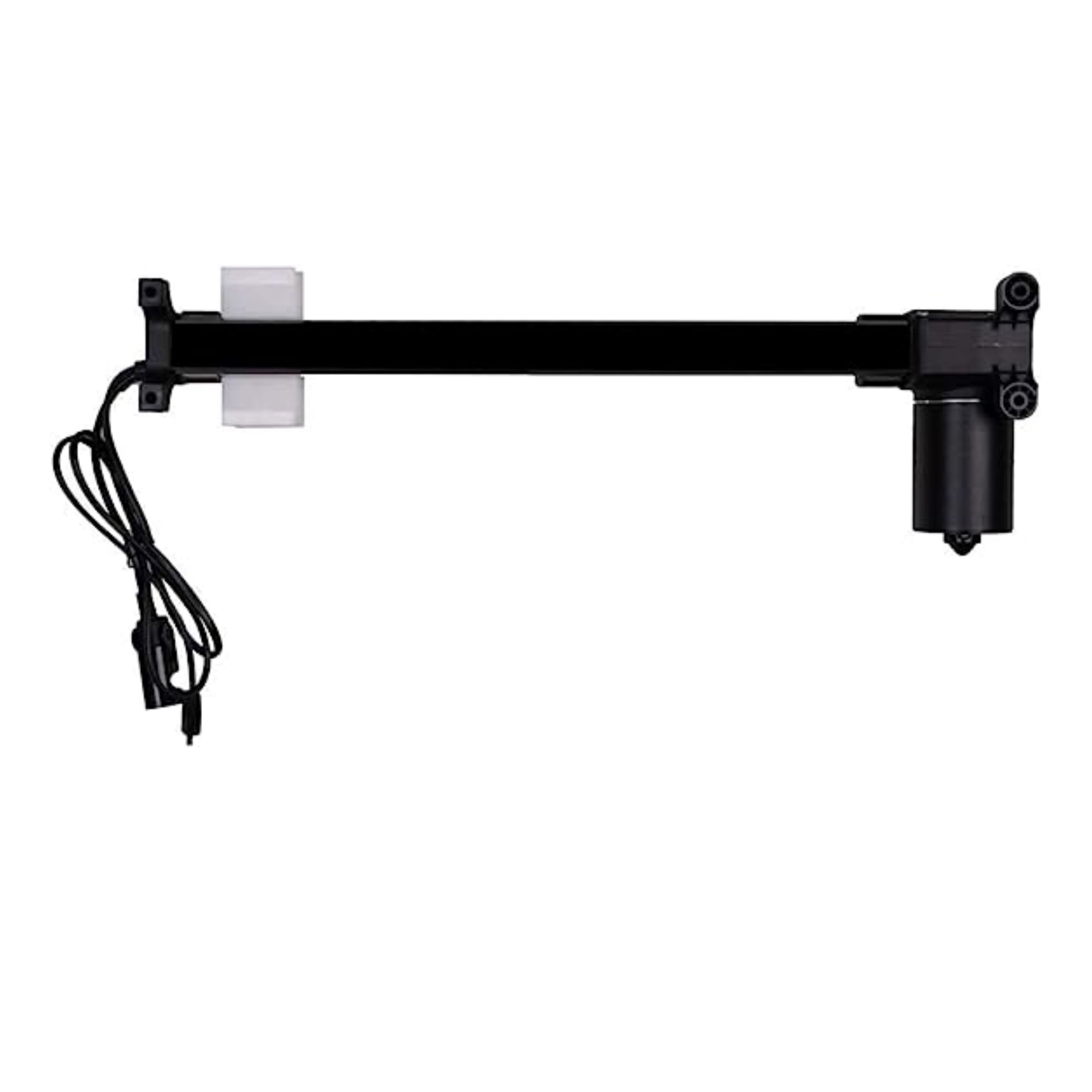

Kaidi Motor Model KDPT007-11 Linear Actuator for Power Recliner Lift Chairs

<p>This Motor Kaidi Linear Actuator Model KDPT007-11 can replace Kaidi Model KDPT007-12, KDPT007-14, KDPT007-100 and many different brands and models. It has 2 connections, 2 Pin Flat Round Power Transformer Connection, 5 Pin Hand Control Plug Connection. Please troubleshoot the switch and power supply first, then check the motor and plug, see if it matches your recliner motor (check your original motor label). Should you have any question, feel free to contact us.</p><p>Please Note: If you have questions on whether this will work with your product, please contact us at any time.</p><p><br></p>

• KD Recliner Motor Actuator Replacement Model KDPT007-11 made by Kaidi

• The motor replaces Kaidi Model KDPT007-11, KDPT007-12, KDPT007-14 and KDPT007-100, Please check your original label before ordering

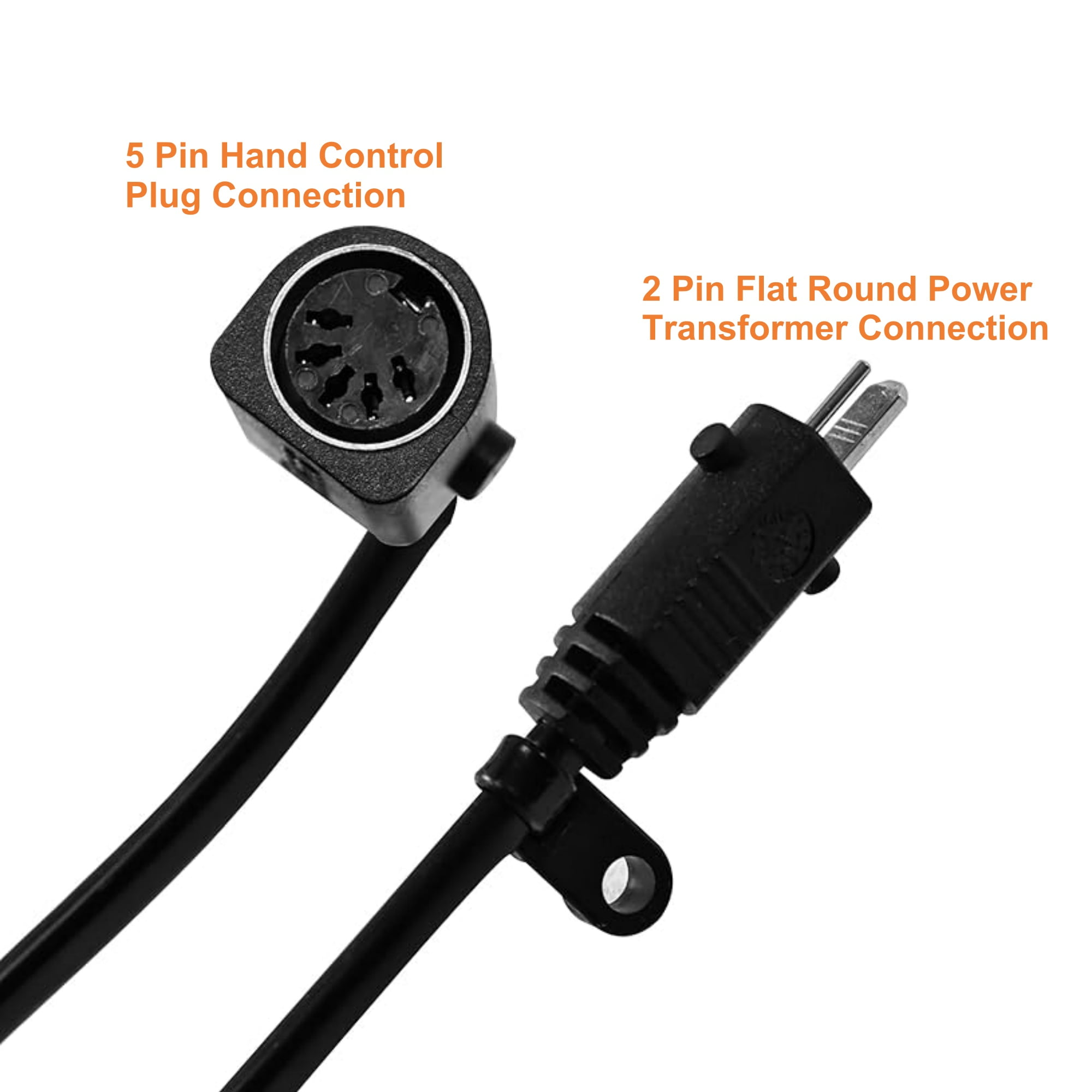

• 2 Cables: 1x 2 Pin Flat Round Power Transformer Connection, 1x 5 Pin Hand Control Plug Connection

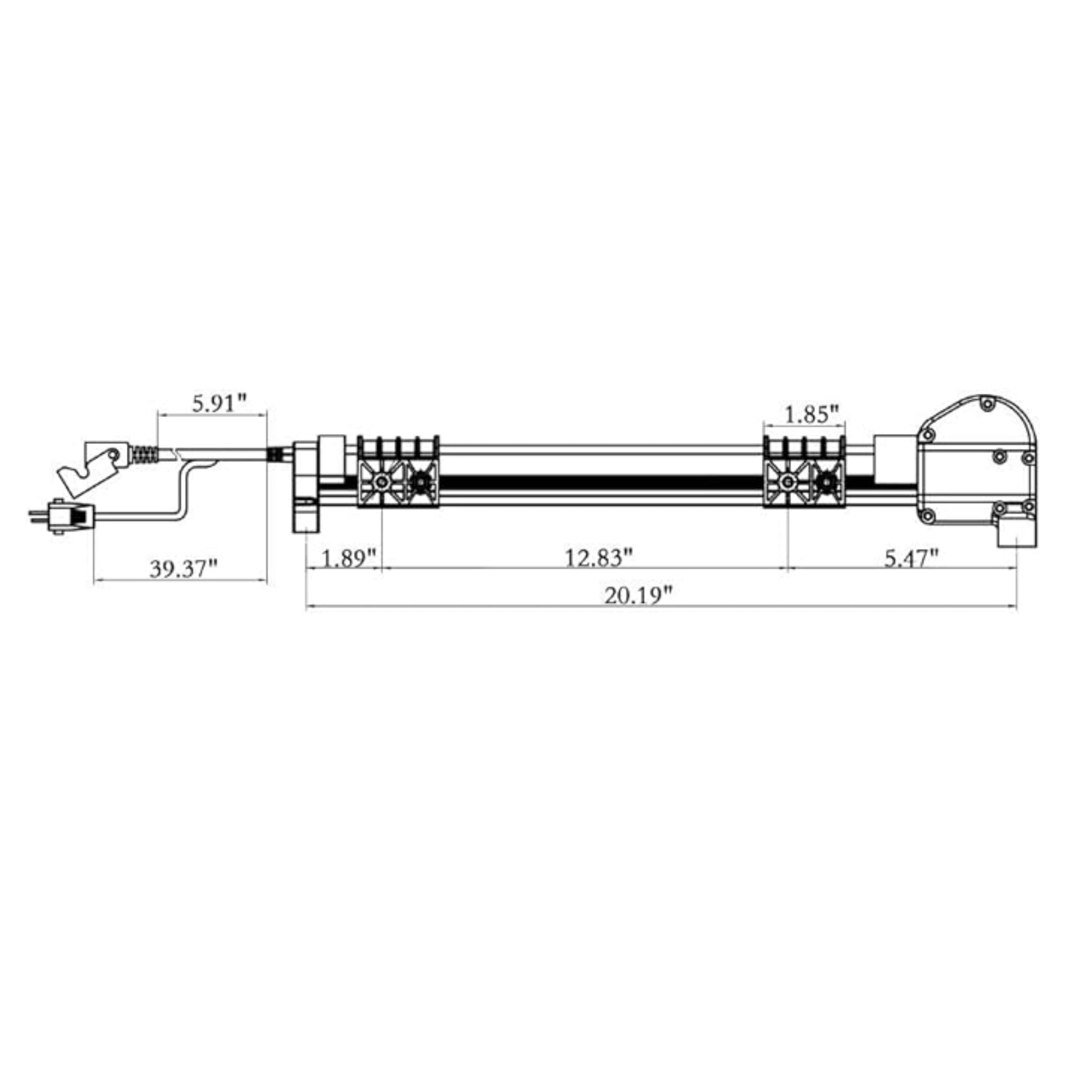

• Stroke: 326mm/12.83 inches, Minimum install dimension: 139mm/5.47 inches

• Easy to install, Speed: 50mm/s, Max.load: 800N, Check Label and also troubleshoot the switch/remote or power supply before ordering a motor



  Technical data:

  Manufacturer: Kaidi

  Model: KDPT007-11

  Stroke: 326mm/12.83 inches

  Minimum install dimension: 139mm/5.47 inches

  Speed: 50mm/s

  Package Dimensions: 24 x 6 x 4 inches

  Item Weight: 4.7lb
